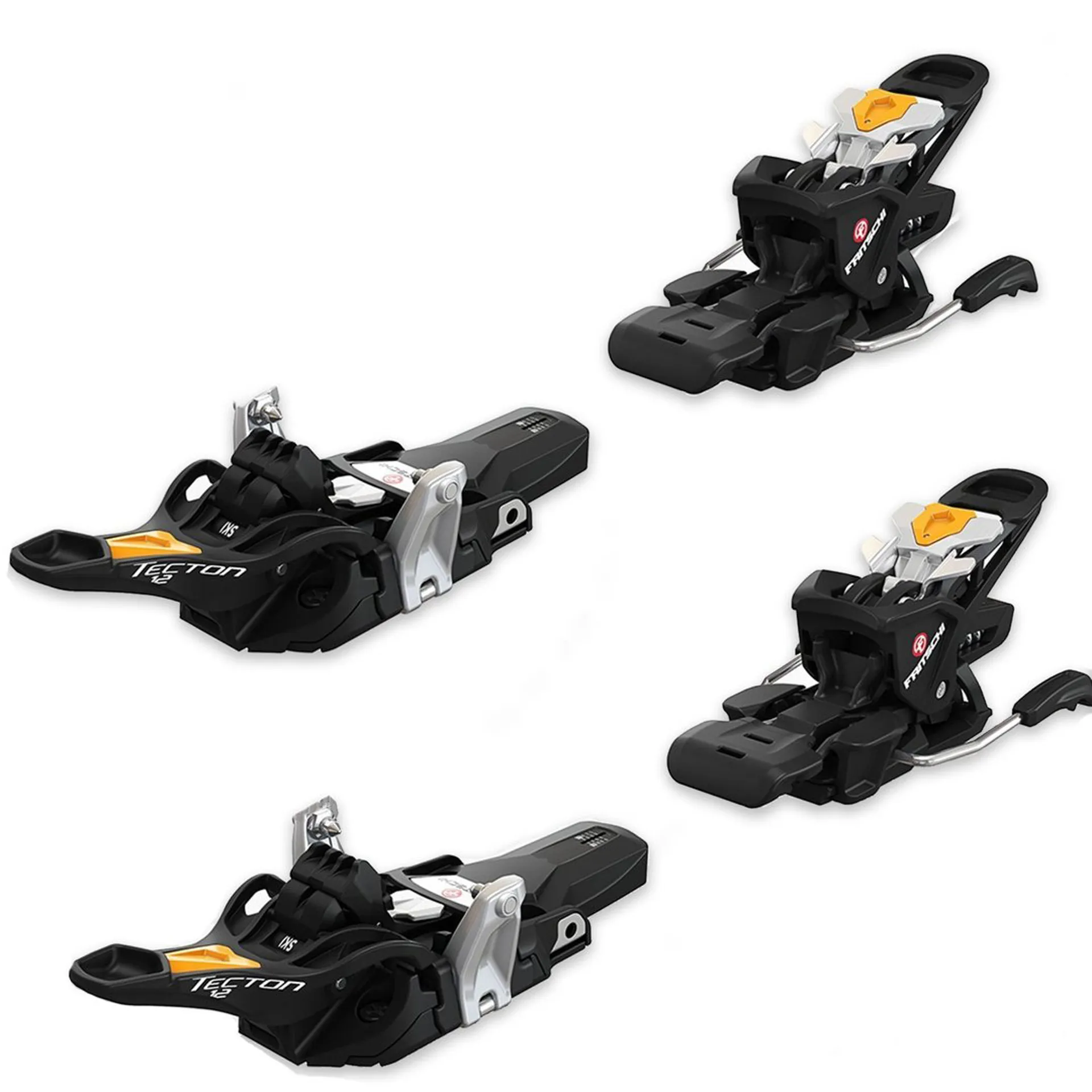

The Tecton 12 Ski Touring binding with Brakes is the latest in a breed of ski touring bindings which feature a pin nose piece and alpine styled heel. This offers all the versatility of a standard pin touring binding, but with the efficient power transfer of an alpine bindings, for the best of both worlds. This is the option with a 100mm brake set included.
Fritschi have taken all the technology from the successful Fritschi Vipec binding and improved toe entry even further, for quick and hassle-free entry into the ski binding.
The rotation free heel built on a rail system with consistent forward heel pressure ensures accurate retention of your ski boot in the binding, whilst driving all the skier's feedback through the binding to the skis for agility and control.
The elasticity in the design of this binding, combined with the emergency auto release lever in the toe piece which only activates when you over rotate forwards on the nose of your skis, improves safety to a level not seen previously on pin touring binding systems.
The bindings come fitted with orange accents, and also included are light blue and lime green inserts so you can customise or match your bindings to your ski graphics.
Specifications:
DIN Range: 5-12
Minimum ski width: 70mm waist
Brake Included: Yes (Can be swapped with other sizes if skis are changed)
Brake widths available: 90mm, 100mm, 110mm, 120mm
Replaceable Brake?: Yes - With a cross head screwdriver
Weight: 550g without brake, 630g with brake
Buying The Correct Ski Binding Brake Width
It should be simple, ski bindings come with different brake width options, measured in MM, and you simply select the brake width to match your skis and everything works. Or does it?!
Where the ski brake sits on the ski, is not in the centre of the skis. However, the measurement manufacturers give you and sometimes even put in the ski name – The ski waist width, or width underfoot, is at the mounting centre line of the skis, and with some brands varies slightly depending on the length of the skis. So when we determine the correct ski brake binding width we need to consider this and add a few mm to be safe, without going too wide so that they stick out. But it is ALWAYS better to be too wide than too narrow, otherwise your brakes will not drop down when you clip out – or fall out – of your bindings and shoot down the mountain, which is dangerous for others and could loose you a ski!
Also, different ski binding brands measure their brakes differently. Some measure the inside to inside distance when the boot is in the binding (and try measuring that easily!!) some centre to centre, and some outside to outside. Pretty frustrating isn’t it!
If you visit forums, all you will hear is “don’t worry bend your brakes out” but this is NOT a good idea and should be a last resort not a standard practice. When you bend your brakes out or in you effectively weaken them a little. Further, when you bend them out, they move in an arc up to the skis and can end up clearing the ski sides but out of position making them easier to catch leading to them failing to work correctly. We have seen brakes bent on the arms, but the mechanism that keeps them in place is damaged through twisting making the brakes dangerous. So ALWAYS try to use the correct width brake, even if it means spending a few pounds on a different set of brakes – the safety risk just isn’t really worth it.
How to measure which brakes to use
STEP 1: Identify the width of your skis “underfoot” which is the middle measurement of the geometry information normally printed on at least one ski, or shown on the product pages website. So for example 122-88-110 is telling you the tip, waist, and tail widths in MM. so this ski would be 88mm under the foot at the mounting centreline of the ski.
STEP 2: Add 2-5mm to give you the minimum brake width you should opt for. So in this example, we would go for a 90mm to 95mm brake. Marker brakes are 90mm, Look brakes offer 95mm, and other manufacturers will do there own thing but have a brake a few mm wider than what you know you need. Do NOT go for anything narrower however good a deal it is, and even going the same width can be tricker as the brake may stick on the sides of the skis and not fully drop down to act as a brake.
What happens if I go too WIDE with my brake width
We actually prefer to be too wide rather than too narrow when it comes to ski binding brakes, as the brake will not get jammed on the side walls of the skis. However, if you go far too wide, the skis when clicked together by the brakes will scissor around a lot which can make handling tricky, and also may stick out beyond the ski width enough for them to drag on the snow when carving hard on the mountain. So for us, in our example, if you have an 88mm ski waist and put a 100mm brake on the skis, that will be OK, but if you went for a 110mm or wider, you would be going too wide in our opinion.
Still Need Help?
Don’t worry if you still don’t know which brake to go for. Just get in touch with us with your ski details and we can advise you. Also, when we sell skis with bindings here, we will always check what the customer has ordered, and if the brake width selected is suitable we will change this before any mounting takes place to ensure your skis brakes function correctly and remain safe on the mountain.
